AUMAN GTL-E 6×4 Tractor

Overview

GTL-E is the configuration our customers order most often for heavy haulage. The combination of the FOTON Cummins ISG engine, a Fast 12-speed gearbox and a 16 t rear axle is simple to maintain, tolerant of variable fuel quality, and rated for a 90 t gross combination weight.

Highlights

• 14–23 export markets order this configuration
• FOTON Cummins ISG with 2,000 bar injection
• 90 t GCW rating for heavy haulage
• Simple mechanical layout, easy local service

Typical applications

• Long-haul freight
• Container haulage
• Heavy haulage
• Port drayage

Full specification

AUMAN GTL-E 6×4 Tractor

Drive mode	6×4
GVW / GCW	25,000 kg / 90,000 kg
Wheelbase	3,300 + 1,350 mm
Engine	FOTON Cummins ISG 400, 11.8 L
Max power / torque	400 hp / 2,000 N·m @ 1,000 rpm
Transmission	Fast HW23712, 12-speed
Suspension	Leaf spring
Axles	Front 7.5 t / Rear 16 t, ratio 4.2
Tyres	13R22.5 18PR mixed / drive

Reference data — subject to the actual vehicle and signed contract.

Configurations we have delivered

Taken from our own delivery records for the GTL-E platform — every option listed has been built and shipped for a customer.

Drive configurations ordered	6×48×44×2
GVW options (kg)	25000310007000018000
Cab options	flat roofhigh roof
Engines ordered	ISG 400ISGe3-350ISG 340ISG 430ISGe3-400ISGe3-380
Power / torque records	294/400/1900257/350/1900400/1900250/340/1900316/430/1900279/380/1900
Gearboxes ordered	HW23712 (with retarder)HW23712HW19710 (with retarder)HW19712 (with retarder)12JSD180T (with retarder)HW23712C (with retarder)
Axle ratios ordered	5.264.24.764.03
Tyre specifications	13R22.5 18PRmixed / drive12.00R20 16PR混合12.00R20 18PR315/80R22.5 18PR12R22.5 18PR混合12.00R20 16PRmixed / drive
Suspension	leaf spring
Steering	LHD

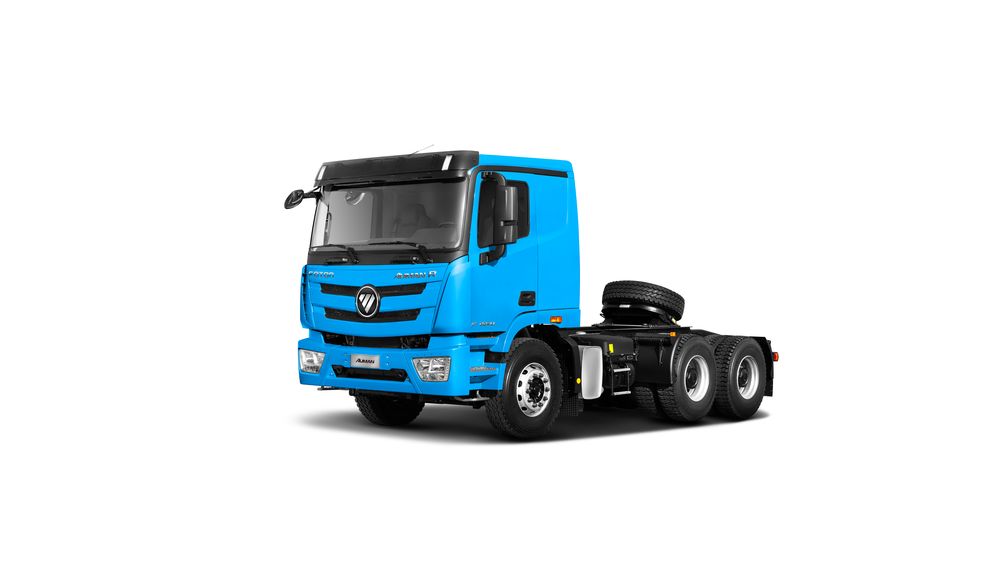

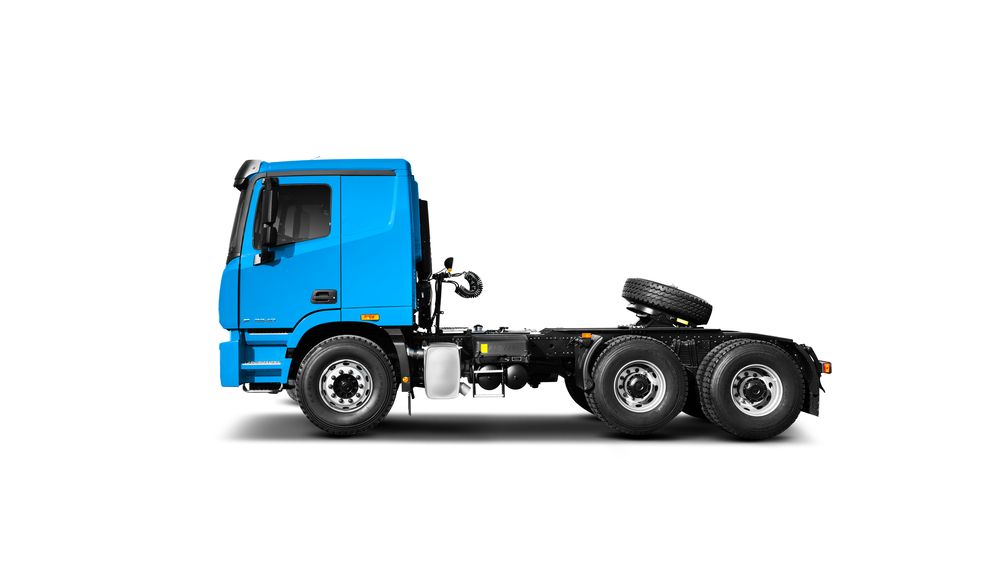

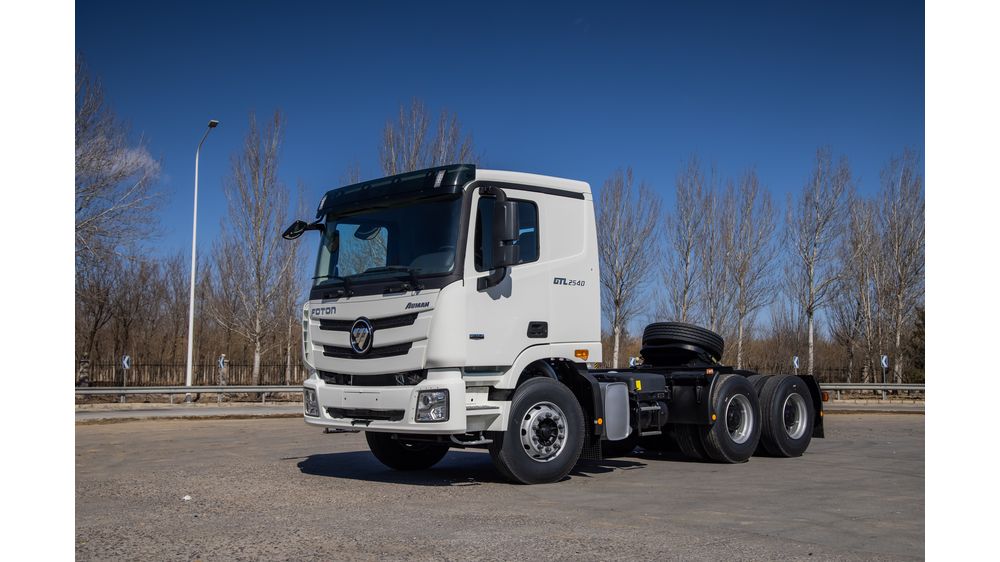

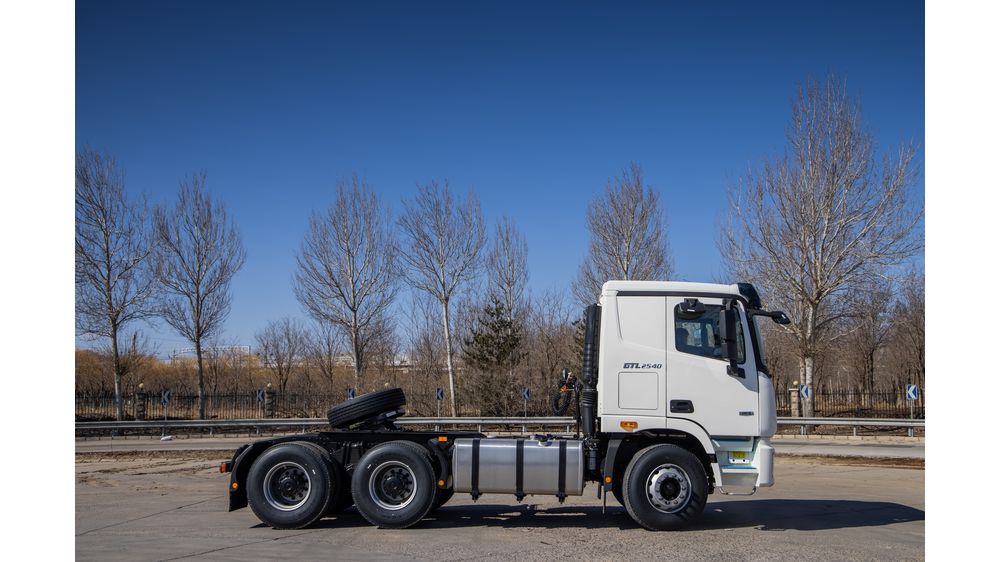

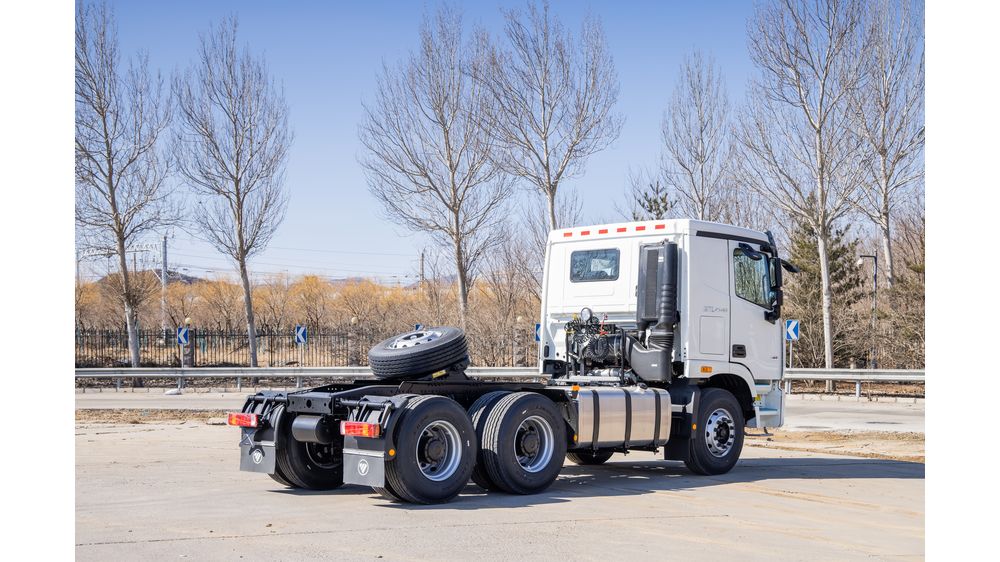

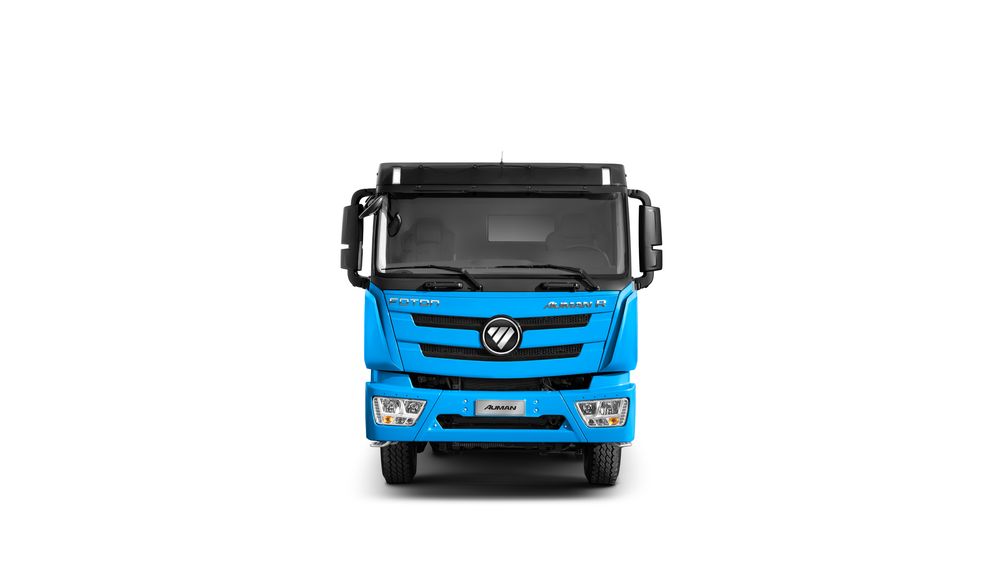

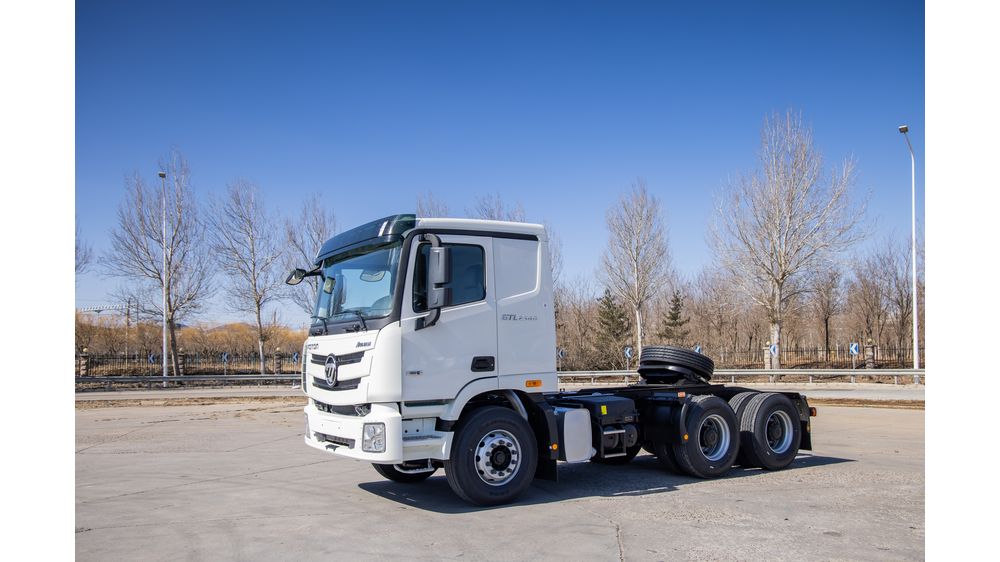

Gallery
