AUMAN C 8×4 Dump Truck

Overview

Built on the upgraded AUMAN C construction chassis: a 320 mm frame, reinforced leaf springs, a fourth-generation 16 T cast steel axle and a 9 T front axle with Mercedes-Benz technology. Configured for continuous heavy loads on poor roads and gradients.

Highlights

• Frame widened to 320 mm (8+7) for carrying capacity and durability
• 4th-generation 16 T cast steel rear axle
• 12 L engine with 2,300 N·m at low rpm
• iBrake assist for controlled descents under load

Typical applications

• Open-pit mining
• Quarries & aggregates
• Road & bridge works
• Site earthmoving

Full specification

AUMAN C 8×4 Dump Truck

Drive mode	8×4 / 6×4
GVW	55 t
Engine	FOTON Cummins 12 L, max torque 2,300 N·m
Injection pressure	2,000 bar multi-stage intelligent injection
Engine braking	iBrake engine assist, max 370 ps braking power
Frame	Widened to 320 mm (8+7), holeless wing faces
Front suspension	10-plate leaf springs, upgraded material and shot blasting
Rear axle	4th-generation 16 T cast steel axle
Front axle	9 T front axle with Mercedes-Benz technology

Reference data — subject to the actual vehicle and signed contract.

Configurations we have delivered

Taken from our own delivery records for the EST platform — every option listed has been built and shipped for a customer.

Drive configurations ordered	6×48×44×2
GVW options (kg)	250003100062000550003800060000
Cab options	flat roofhigh roof
Engines ordered	ISG 380ISGe3-430ISGe3-350ISGe3-380ISGe3-460ISGe5-400
Power / torque records	279/380/1900257/350/1900430294/400/1900316/430/1900343/460/1900
Gearboxes ordered	12TX2420TDaluHW2371212TX2420TD（alu）HW19712 (with retarder)12TX2621TDalu（缓）12TX2421TDalu（Q+缓）
Axle ratios ordered	5.263.3643.0834.1113.865.92
Tyre specifications	315/80R22.5 18PRsteer / drive12.00R20 20PR混合295/80R22.512.00R20 20PR驱动12R22.5 18PRsteer / drive12.00R20 16PR驱动花纹
Suspension	leaf springleaf / air
Steering	RHDLHD

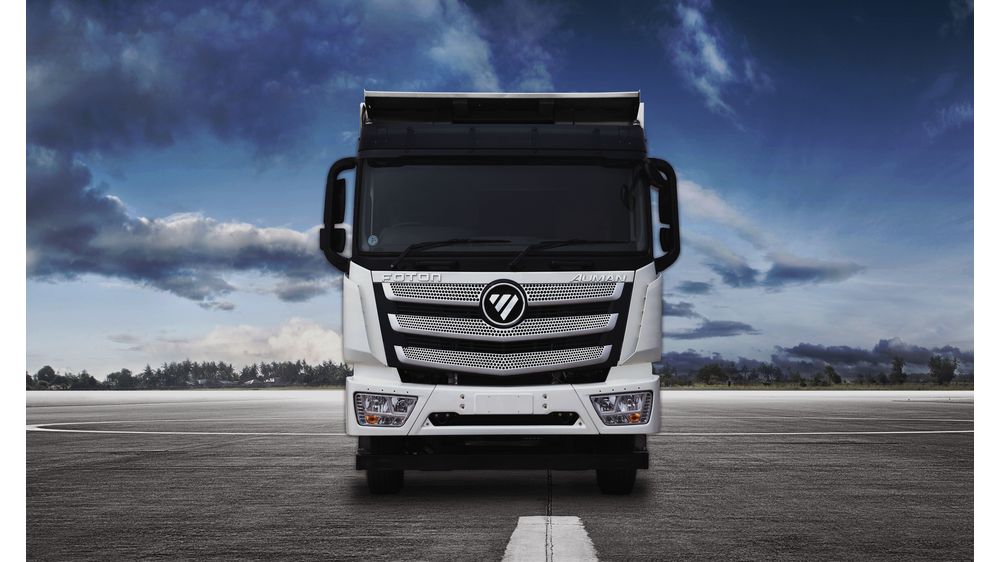

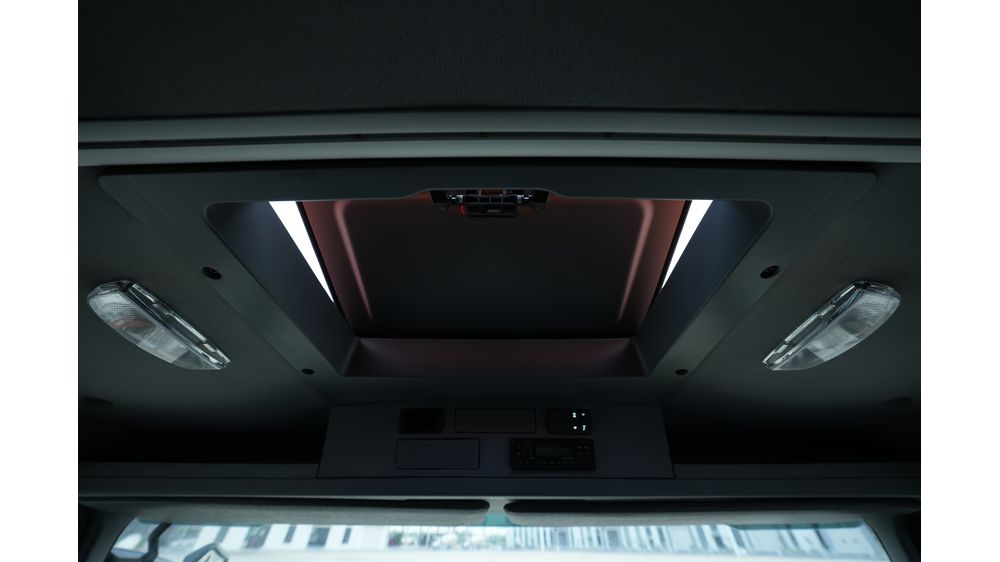

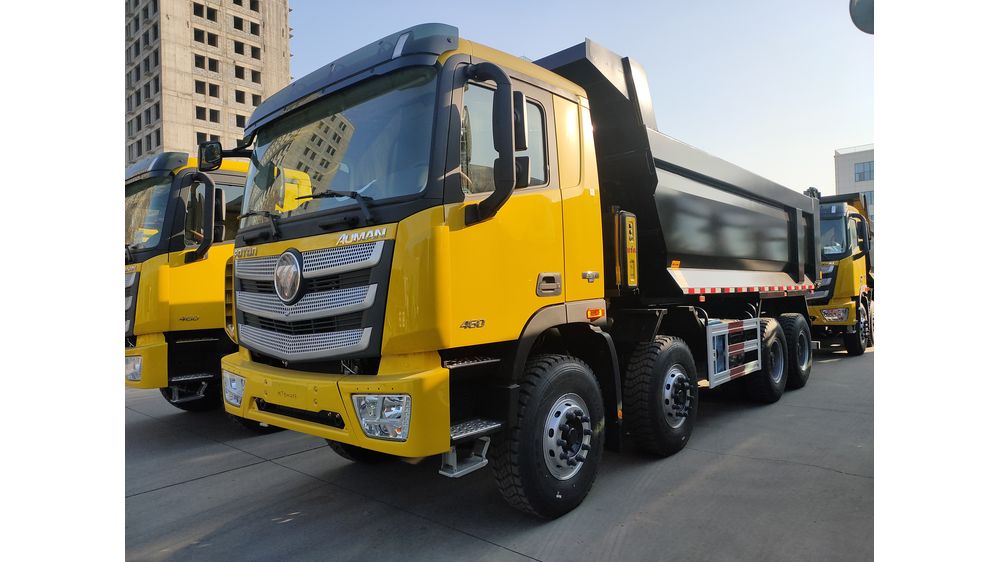

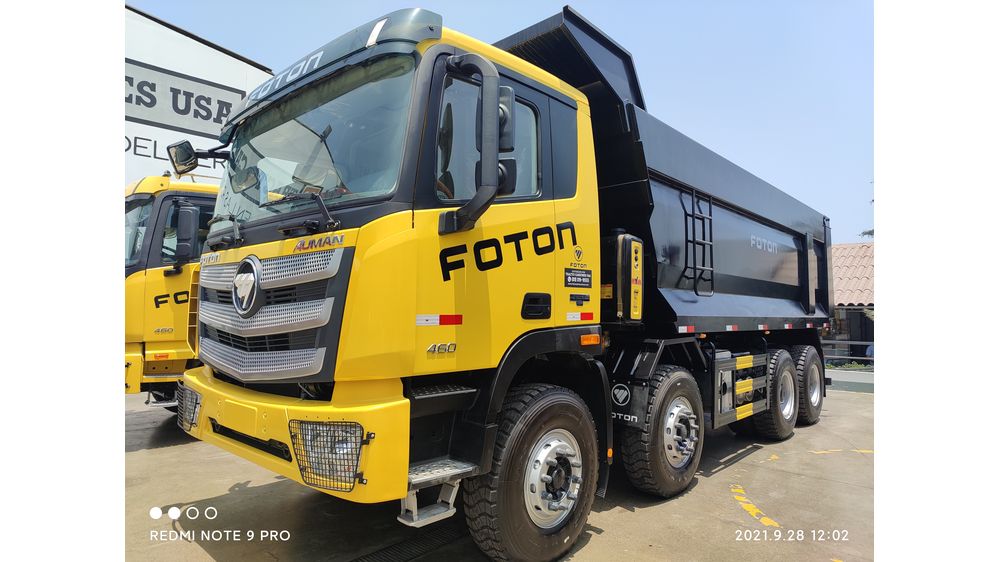

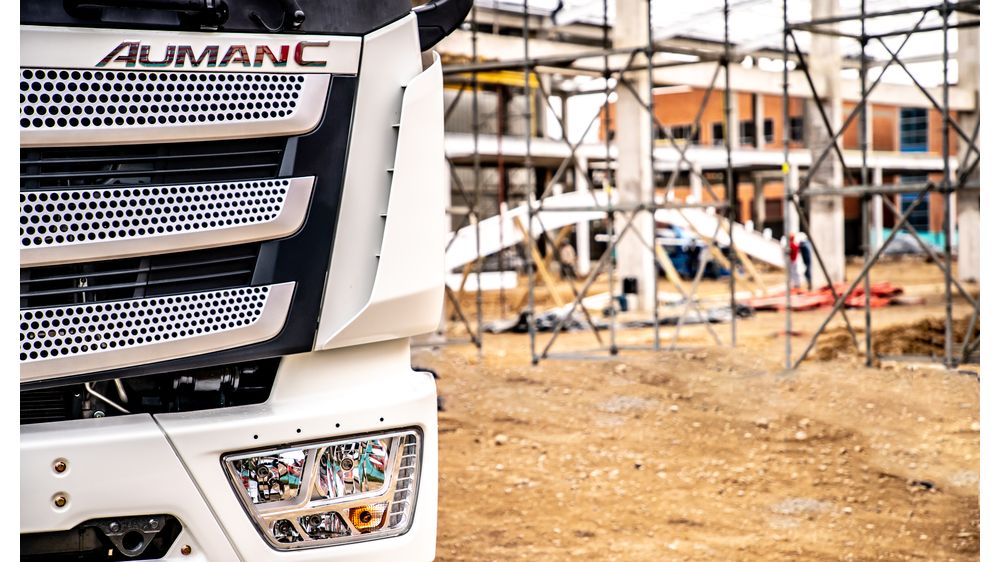

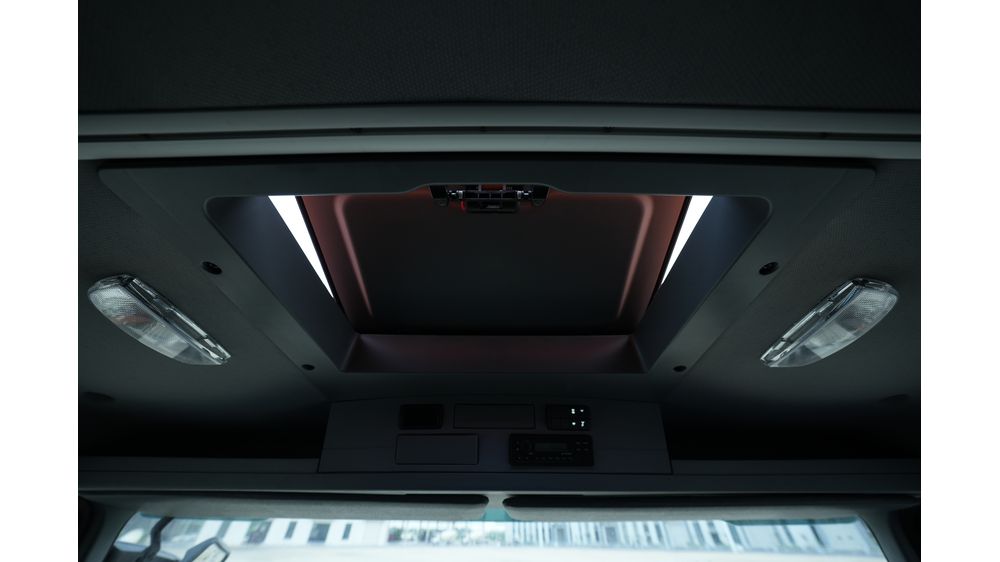

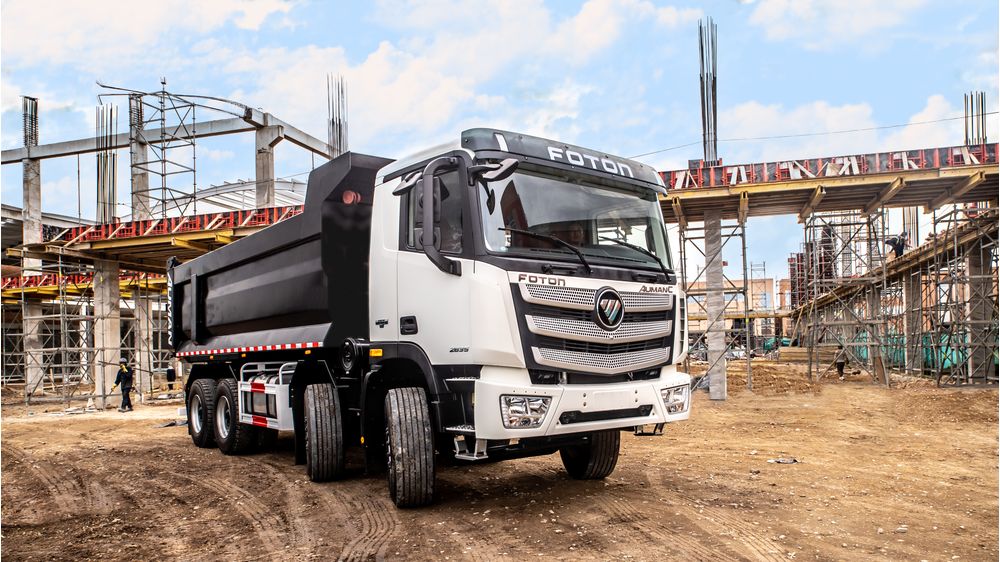

Gallery

Click any photo to enlarge — use ← → to browse.
