AUMAN C 8×4 Concrete Mixer

Overview

A dedicated mixer built on the AUMAN C construction chassis, sharing its 320 mm frame, 16 T cast steel rear axle and 9 T front axle. Drum volume and hydraulic package are selected to match the material, the site and the service capability of your market.

Highlights

• Shares the reinforced AUMAN C construction chassis
• 16 T cast steel rear axle for continuous loaded cycles
• Drum volume and hydraulic package configurable to your market
• Driver-centric cab with airbag seats and flat floor

Typical applications

• Ready-mix plants
• Infrastructure projects
• Housing construction
• Equipment rental fleets

Full specification

AUMAN C 8×4 Concrete Mixer

Drive mode	8×4 / 6×4
GVW	55 t class (reference)
Engine	FOTON Cummins 12 L, max torque 2,300 N·m
Engine braking	iBrake engine assist, max 370 ps
Frame	320 mm (8+7) reinforced frame
Rear axle	4th-generation 16 T cast steel axle
Front axle	9 T front axle with Mercedes-Benz technology
Drum & hydraulics	Volume and hydraulic brand selected to market requirement
Cab compliance	European collision standard cabin, airbag seats

Reference data — subject to the actual vehicle and signed contract.

Configurations we have delivered

Taken from our own delivery records for the GTL platform — every option listed has been built and shipped for a customer.

Drive configurations ordered	6×48×44×2
GVW options (kg)	250003800055000440008000040000
Cab options	flat roofhigh roof
Engines ordered	YC6MK400-33ISGe3-350ISGe3-400ISGe3-430ISG 430ISGe3-460
Power / torque records	294/400/1900316/430/1900400257/350/1900430343/460/1900
Gearboxes ordered	12TX2420TDaluWLY12G180TDalu9JSD200A12JSD180TA（Q）9JSD220TA12JSDX240(Q)
Axle ratios ordered	4.25.265.734.763.0833.364
Tyre specifications	13R22.5 18PRmixed / drive315/80R22.5 front 18PR / rear 16PR driveZ8-Radial 12.00R2012.00R20315/80R22.5steer / drive12.00R20 20PRsteer / drive
Suspension	leaf spring
Steering	LHD

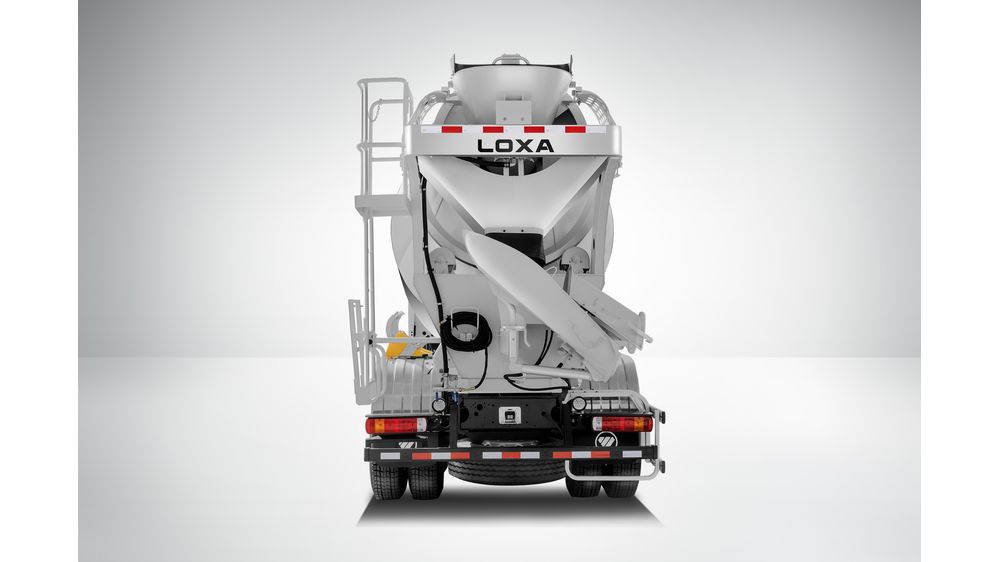

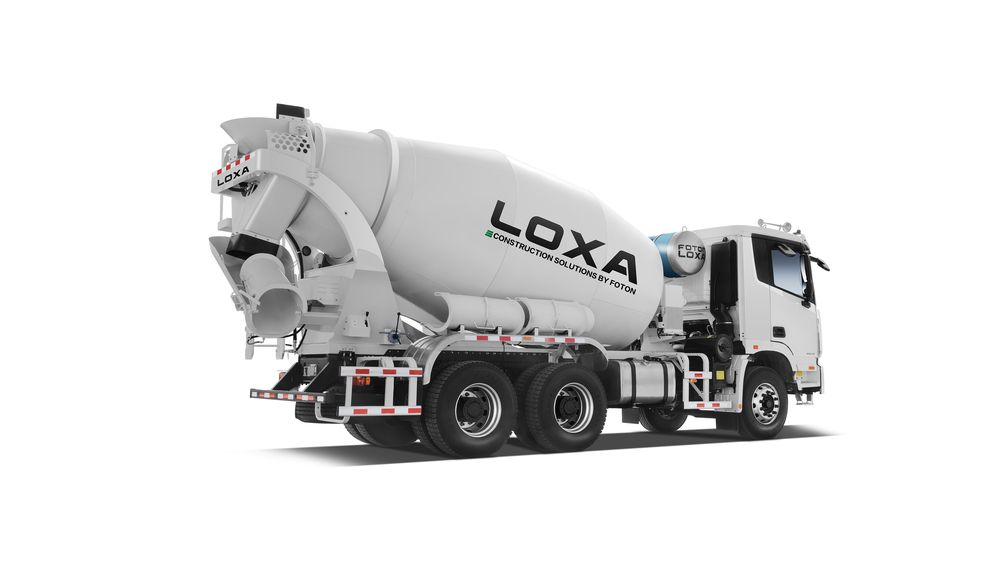

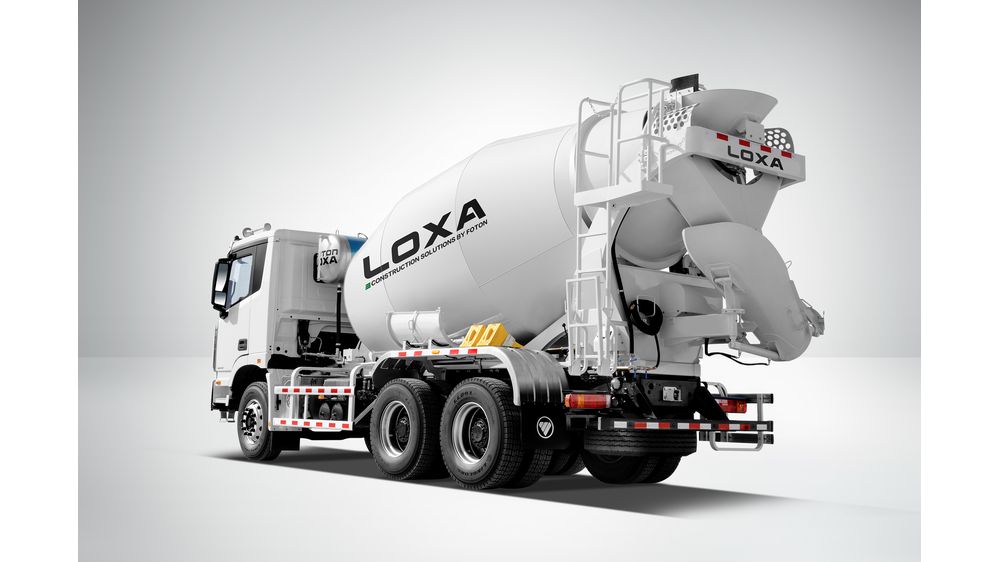

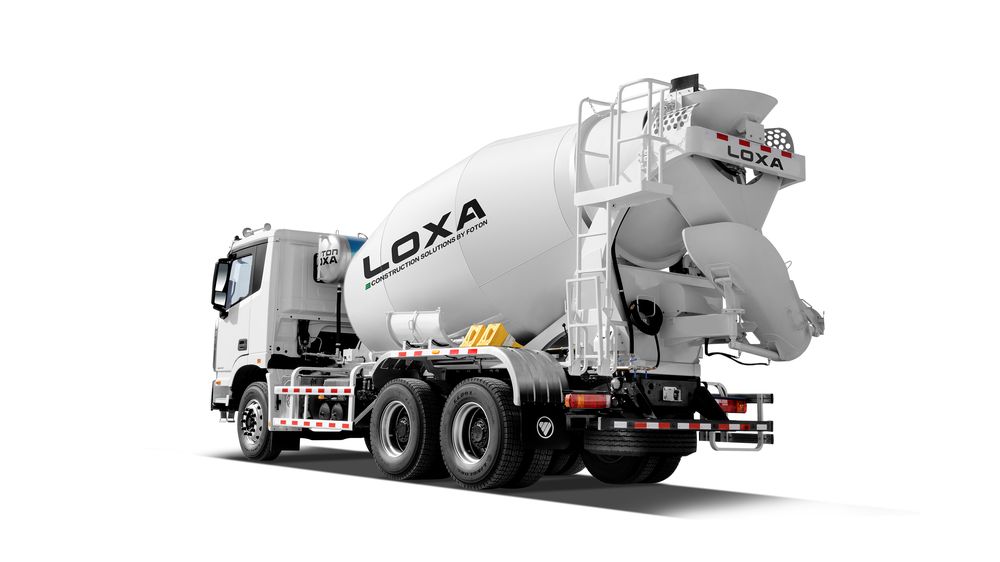

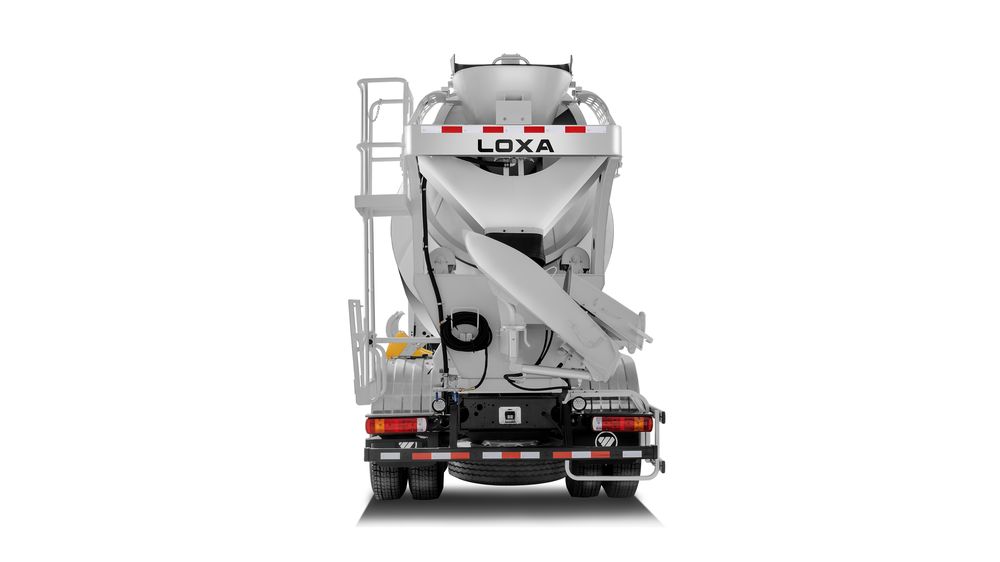

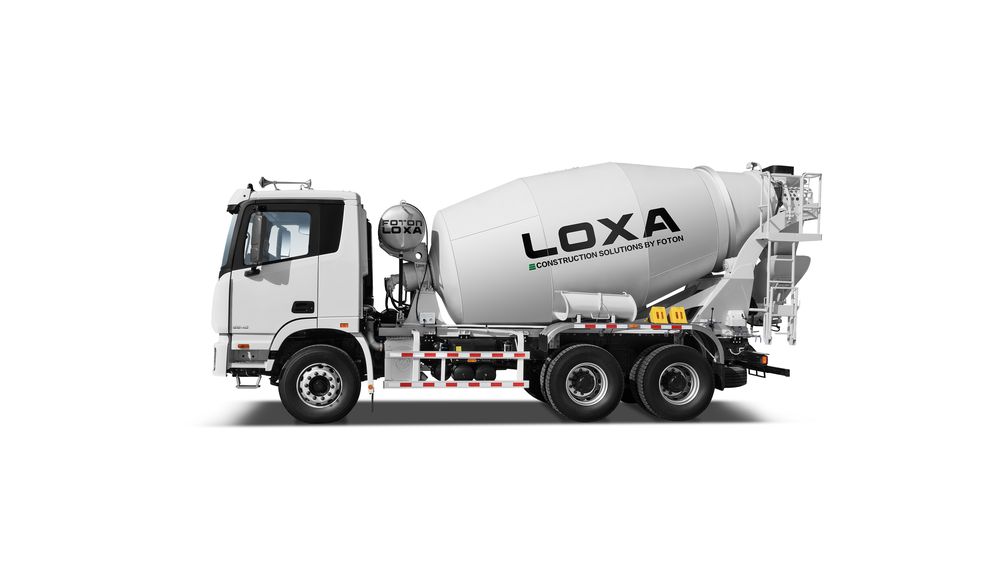

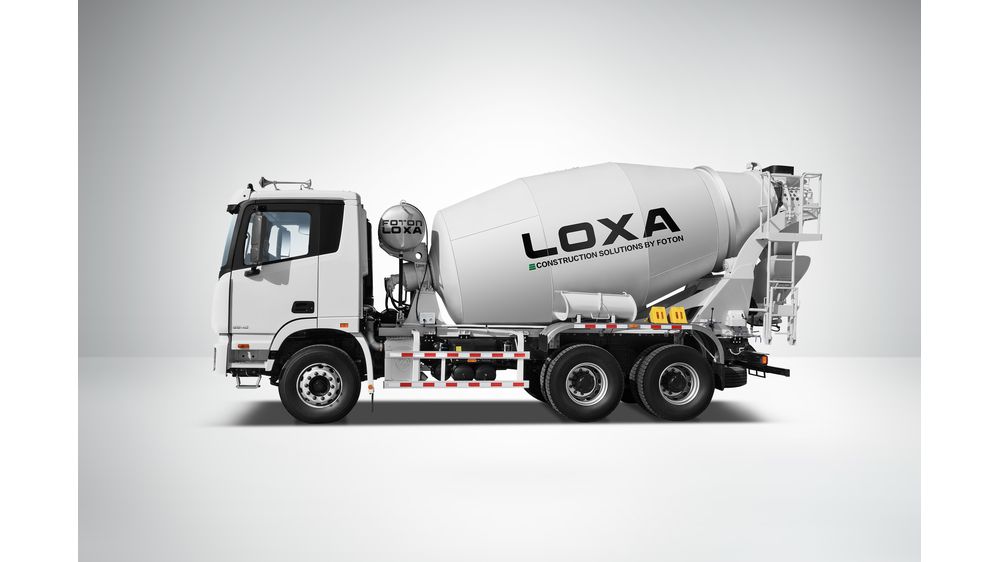

Gallery

Click any photo to enlarge — use ← → to browse.
